How does fuel pressure regulator work? Ultimate guide [2023]

A fuel pressure regulator is not a very popular part of a vehicle, however, it is an important component. The air-fuel pressure in your car's fuel unit will become imbalanced without this device. Hence, the gas pressure regulator is vital for the efficient running and effective performance of your car’s internal fuel unit, providing the fuel injectors with the necessary support. Here we will discuss all you need to know about a gas pressure valve.

What is a fuel pressure regulator?

fuel pressure regulator

The fuel pressure regulator is vital to ensuring that the air and fuel mixture within the system is at a balanced level. Without a fuel pressure regulator, the fuel pump will push too much fuel into the gas injectors, making the injectors not produce enough fuel for the car’s engine. Your car needs a good gas pressure regulator to ensure the engine runs in the right way, without overworking itself.

This device determines and controls the fuel pressure whenever the car is in motion, allowing the engine to work efficiently. If your car has a bad gas pressure regulator and it shows some symptoms like black smoke from the exhaust pipe, engine misfires, poor acceleration, issues with deceleration, a stalling engine, a black spark plug, etc., your engine will not be able to perform optimally.

Where is a fuel pressure regulator located?

A gas pressure regulator is located at the end of the fuel rail and it connects to the injectors of the car. To locate the fuel pressure regulator you have to first find the fuel rail in your car engine, which is located at the end just before the fuel gets into the engine.

What is inside the fuel pressure regulator?

Now that you know the functions of a fuel pressure regulator and where it is located, you need to know the parts of a gas pressure regulator and what it is made up of.

 inside the fuel pressure regulator
  1. M10 pressure adjust nut: The device comes with a threaded adjuster and locking nut at its top. This nut alters the preload on the spring and increasing the preload will increase the fuel pressure.
  2. Pneufit for 6mm plastic hose: The vacuum hose provides a boost to the top of the diaphragm.
  3. Stainless spring: The spring puts pressure on the diaphragm, and has another name - the base pressure, which sits on the engine idle.
  4. Diaphragm membrane: The diaphragm seals the regulator and it moves the bypass valve to alter the gas pressure. The diaphragm is made of nitrile or rubber.
  5. Bypass valve: This is attached to the diaphragm and it controls the flow of fuel to the return port.
  6. Fuel inlet ¾ UNF fitting: Some fuel pressure valves have more than one inlet to handle engines with more than one fuel rail.
  7. Excess fuel port ¾ UNF fitting: This part allows the bypassed gas to return to the fuel tank.
  8. Pressure port: The pressure port is used for attaching a fuel pressure gauge.

The importance of a fuel pressure regulator in a car

The gas pressure needs to flow across the fuel injector, and not just touching the tip.

importance of a fuel pressure regulator

The fuel pressure regulator is important for any EFI system and without the regulator; the fuel rail will be unable to create a balanced amount of pressure to support the fuel injectors with the right amount of fuel. Without the regulator, the gas will flow in a straight line and not get to the fuel injectors. To create a balanced air-fuel mixture, you need a proper gas pressure regulator.

The functions of a fuel pressure regulator

  • The fuel pressure regulator is in charge of maintaining a balanced and constant fuel supply, even when the engine demands a different need in the fuel level. The fuel injector has two sides to it, one side under the fuel rail and the other controlled by a compressor. The appropriate ratio of air-fuel mix is 1:1 ratio.
  • The gas pressure regulator is in charge of maintaining a 1:1 ratio so that the engine runs as it should. If the fuel pressure regulator is damaged in your car, the engine will perform below par.
  • The gas pressure valve has a diaphragm and it is this diaphragm that is in charge of controlling the bypass valve, allowing the valve to open and close while supplying steady fuel delivery to power the engine. When a fuel pressure regulator is bad, the diaphragm will not be able to open and close when it should.

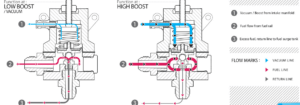

How does a fuel pressure regulator work

The fuel pressure regulator has a diaphragm that controls the bypass valve, which can open and close for steady fuel delivery to the engine. From the diagram shown above, when you apply pressure to the top of the regulator, a spring pushes the diaphragm down and reduces the amount of excess fuel.

This makes the pump work harder, and the gas pressure increases towards the boost pressure from the intake manifold. There are times when this component becomes faulty. To know the symptoms of a bad gas pressure regulator, check out this well-written article on the subject.

fuel pressure regulator mechanism

The difference in fuel pressure regulators

To ensure that you are using the right type of this device in your car, it is important to know the differences between an original regulator and a fake pressure regulator. A larger gas pressure valve can handle more flow and higher pressure and still maintain its regular 1:1 ratio.

Original and high-end gas pressure regulators can handle different types of fuels like ethanol and methanol. A cheaper gas pressure regulator cannot handle different types of fuel because the cheap regulator will end up with a broken diaphragm and this could, in turn, affect the engine of your car badly.

Types of fuel pressure regulators

Types of fuel pressure regulator

Before modern cars came to be, low-pressure fuel systems were popular. And, as carburetors changed and fuel injections were created, low-pressure systems took the back seat. But, with the popularity of vintage cars that use Weber or Stromberg carburetors, low-pressure fuel systems are still in style. Today, there are two main types of gas pressure regulators, and they are:

Non-return style regulators (blocking)

These types of regulators imitate the traditional pressure regulator designs that reduce the fuel pressure and flow rather than producing excess fuel to the tank. A control valve restricts the flow to the tank. The pressure is high along the fuel lines that connect to the pump and the regulator, and the pressure decreases from the regulator to the carburetor and the fuel rail.

An increase in the gas pressure in the carburetor will make the pressure in the valve also rise. And this increase will make the fuel push the diaphragm upwards, making the control valve shut down and reduce the flow of fuel to the engine.

When the engine of your car needs more fuel as you increase your driving speed, the fuel pressure in the fuel lines reduce. This will then release the diaphragm open the valve and increase the fuel flow.

Non-return style regulators

More on non-return style regulators

Non-return style regulators are known for their lack of a fuel return line from the pressure regulator back to the fuel tank. In this type of regulator, as seen in the diagram above

  1. The fuel enters through the inlet port
  2. The gas travels past the control valve and gets to the carburetor.
  3. The two outlet ports in the regulator.
  4. The fuel control valve (diaphragm) controls fuel flow and pressure.
  5. A spring limits the up and down movement of the diaphragm.
  6. A threaded adjustment mechanism limits the fuel pressure that gets to the carburetor.
  7. A vacuum port allows the regulator to make up for the boost pressure with forced pressure application.

The advantages of the non-return style fuel pressure regulator.

  • This type of regulator does not need a fuel return line and fittings from the regulator to the fuel tank. As a result, this helps to reduce expenses and complexity in case of any damages.
  • You can use different regulators at different pressures from one pump.

The disadvantages of the non-return style fuel pressure regulator.

  • The fuel control valve of the blocking style regulators becomes very sensitive to dirt that can make it clogged up.
  • As gas pressure increases and get to its maximum to which the pressure regulator has been set, the internal valve must go off to prevent pressure from reaching the external side of the valve. For the internal valve to go off there has to be extra pressure and this can overwork the carburetor and cause damage.
  • The internal valve in its closed position, the leakage of the fuel control valve can cause 'pressure creep.' This is when leakage causes the fuel pressure to build at an outlet instead of two, which also overworks the carburetor and causes damages.
  • For the blocking style regulators, pressure adjustments should be made while the engine is running. This action allows for a little amount of fuel to run through the regulator for accurate pressure readings.

Return style gas pressure regulators (bypass)

A bypass fuel pressure regulator consists of a bypass valve and a fuel return line. Here, the fuel pump sends fuel to the fuel lines and into the fuel injectors. The fuel from the injectors goes through an inward port and passes through the bypass valve. Which then controls the flow of fuel and pressure to the carburetor and engine.

As the pressure increases the bypass valve opens up and allows some fuel flow back into the fuel tank. A metal spring controls the up and down movement of the bypass valve.

Return style fuel pressure regulator
  1. Fuel enters through the inlet port.
  2. This gas travels through the gas bypass valve (which controls the fuel flow and pressure).
  3. The fuel flows round through an outlet port to the carburetor.
  4. A spring controls the opening and closing of the valve.
  5. A threaded adjustment mechanism limits the gas pressure to the carburetor.
  6. A vacuum boost allows the regulator to make up for the boost pressure with the forced application.

Advantages of the return style gas pressure regulator.

  • It guarantees a prolonged fuel pump life and a seamless pump operation. With this regulator, the fuel pump maintains the pressure rather than working itself harder than normal. Like in the blocking style regulator.
  • There is constant and effective fuel pressure to the outlet port.
  • The fuel pressure is balanced; it works and distributes pressure to all parts.

Disadvantages of the return style fuel pressure regulator.

  • It is more expensive and more complex than the blocking style regulator.
  • The return fuel line is sensitive to pressure drop. Also, an excessive drop in pressure results in damages for the regulator and engine.
  • This type of regulator cannot be used when several regulators need to be used from one gas pump.

In conclusion

A gas pressure regulator is an integral part of the gas unit in your car. If you do not have the right fuel pressure regulator in your car, your car engine will malfunction. The right regulator is built to last for as long as possible.

However, when a car becomes overworked and treated carelessly, the regulator gets damaged. Always check yours to ensure it is working properly and performing its functions as it should.
